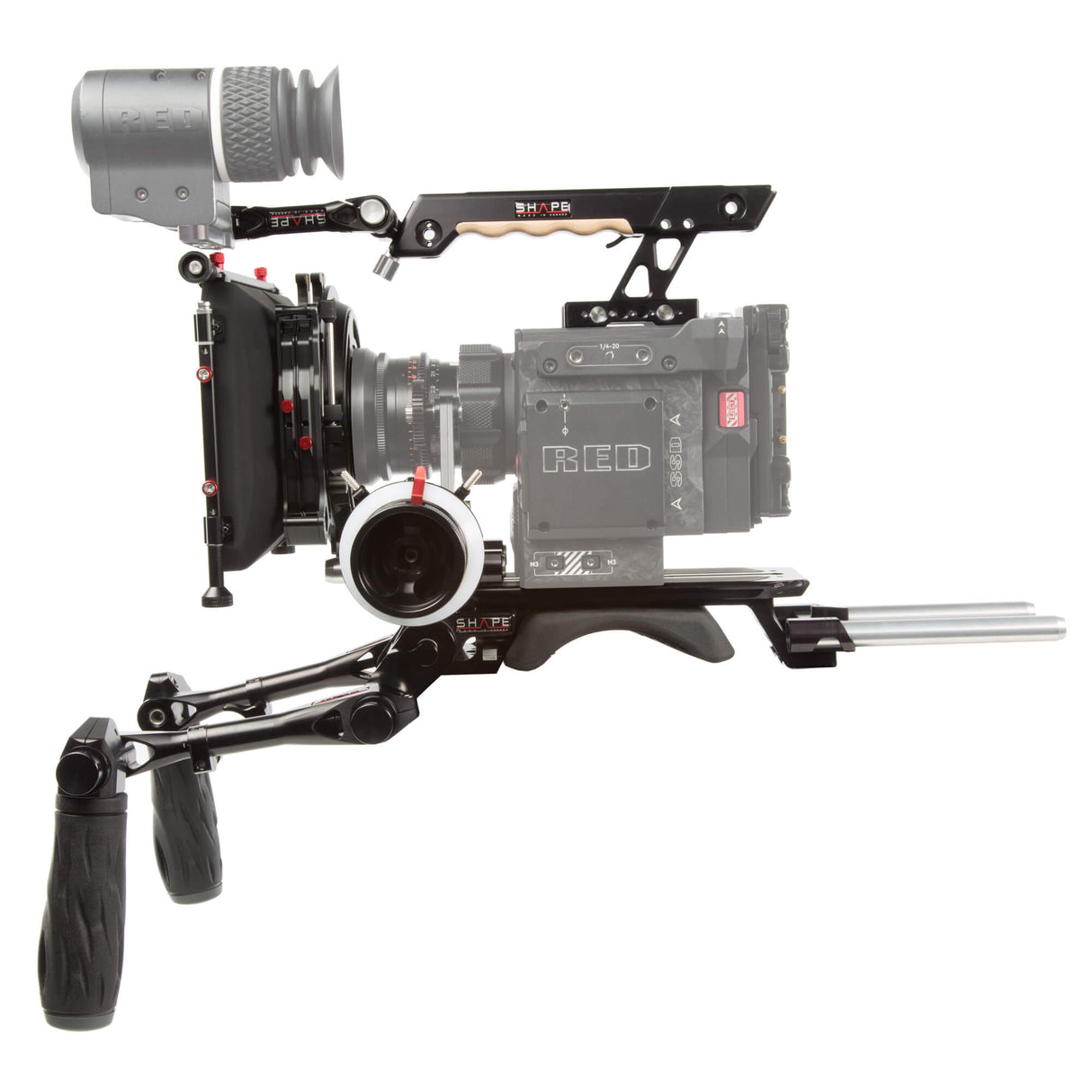

Solution complète pour RED® DSMC2

Revolt BP10 - VCT universal baseplate (BP10)

The REVOLT VCT Universal Baseplate (BP10) offers a unique design, created for both amateur and professional filmmakers seeking camera supports & stabilizers of high-quality. It features a front to back sliding plate allowing quick positioning of your camera accessories for an optimal adjustment of your camera’s center of gravity and weight distribution. It is designed with 2 standard Arri rosettes for handles mount and there is a standard quick release adapter plate compatible with most VCT tripod plate. There is also a protective rubber pads on top of the plate to protect your camera.

Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories. It comes with 2 pairs of 15 mm rods (8''and 4'') made of reliable aluminum coated with a clear finish. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The thick shoulder pad produces maximum comfort and is made of gel padding and slip-free material. The baseplate is also designed with a sophisticated tool box to store your extra screws and Allen key. Quick access to your extra screws and Allen key can be a time saver, even more so, when you are in the middle of a shoot. The shoulder plate is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored and there is a magnet at the back to attach your Allen key.

• Front to back sliding plate for quick positioning of your camera accessories and an optimal adjustment of your camera’s weight distribution.


• Match your camera’s optical center. Being able to adjust the height of your rod bloc to match your camera’s optical center is exactly what you can do.


• Comfortable and moveable shoulder pad made of slip-free material and gel padding (BP-0100).


• Front and rear 15 mm lightweight rod blocs with 2 pairs of 15 mm rods (8'', 4'') to mount more camera accessories.


• Safety pins prevents the upper plate from sliding.


• Ratchet knob applies an optimal pressure to the rods.


• Sophisticated tool box to store your extra screws and Allen key

Compatible with the following cameras:

• RED (DSMC2)


• Arri (Amira and Alexa Mini)


• Sony (Venice, FS7, FS7M2, F5, F55, EX1, EX3)


• Canon (C200, C300, C300M2, C700)


• Panasonic (EVA1, Cinema Varicam LT 4k S35, Panasonic Ag-af100, Panasonic Ag-af101 Varicam LT, Panasonic P2)


• Blackmagic (Ursa Mini)


• and many other camera models with interchangeable lenses

RED® DSMC2 shim plate for Arri standard bridge plate 15/19 mm studio (RSPA)

The SHAPE RED® DSMC2 Shim Plate for ARRI Standard Bridge Plate is made from CNC machined aluminum and enables you to mount your RED® DSMC2 camera—such as the Epic, Scarlet, Raven, Dragon, Monstro, Helium, or Gemini—onto a 15 or 19 mm studio bridge plate and maintain the industry-standard 85 mm distance from lens center to rod center. This distance allows your rod-mounted accessories, such as follow focus units and matte boxes, to work properly with your RED® camera. The plate features five threaded camera mounting holes, enabling you to mount your camera forward of back-of-center of the plate, and providing additional adjustment that comes in handy when balancing the system. Two included captive 3/8"-16 tie-down screws travel with the plate and won't fall out when the camera is not mounted on the plate. Four rubber pads on the top of the plate help cushion your camera, holding it secure. The machined plate ensures the correct lens center-to-rod center height when mounting your RED® DSMC2 camera on a standard ARRI compatible 15 or 19 mm studio bridge plate. The rubber pads allow you to mount your camera onto the plate while avoiding metal-to-metal contact between your camera and the plate.

RED® DSMC2 top plate extendable handle EVF mount (THRWE)

The view finder bracket arm is designed with SHAPE patented push-button technology, allowing you to quickly adjust the position of your view finder. The top plate and top handle are designed to give you a solid and comfortable grip for the manipulation of your RED® camera. The top plate is specifically designed to be attached on the top of the RED® camera. and is designed with built-in threaded holes to quickly mount many camera accessories to it. The center of the top plate is designed to perfectly insert and mount the top handle that you can strongly attach with an Allen key. The Extendable & Sophisticated Camera Top Handle is designed with a socket to attach a 15 mm rod clamp (15CTH), perfect to insert the view finder bracket arm (THRWE). The handle grip frame is made from robust CNC machined aluminum and the finger grip is made from genuine Canadian maple wood for maximum comfort. You can quickly adjust and lock the handle length for an extension of approximately 3 inches from its original position in order to optimize the balance of your camera to your lens type. The top handle also features six threaded holes perfect to attach and manipulate more camera accessories like our Push-Button arm (RPB2A).

SHAPE MATTE BOX SWING-AWAY (AKSWA)

A silicone matte box mounted on a CNC aluminum main frame with an outer diameter of up to 124 mm. It provides a wide field of view for a variety of wide-angle lenses.
Two 4x5.6 filter trays (one rotary) with easy access handles that allow one-handed filter changes. 4x4 filters can also be installed in the trays. The frame includes two stops at the bottom of the filter trays section to prevent the filters from falling through. The removable swing-away module makes lens changes a snap. A spring pin helps to lock the mechanism closed without manually setting the pin. 2 magnets hold it in place when closed.
Removable height adjustable rod block with one tightening knob allows micro-adjustment of height, ensuring compatibility with a wide range of lenses. The rod block can be re-installed directly on the main frame for a straight configuration. The complete kit allows three different configurations, (swing-away, straight and clip-on).

Removable light carbon fiber french flag can be attached to the top to prevent flares. A series of adapter rings are included in the kit:

Clamp-on adapter ring:	124-87 mm
Threaded aluminum adapter rings:	87-82 mm 87-77 mm 87-72 mm 87-67 mm
Fabric knicker:	124 mm



Follow Focus Pro (FFPRO)

Manufactured in sleek black anodized aluminum, this special edition professional follow focus unit combines a refined look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down. The SHAPE engineering team is internationally renowned for creating one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth, depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.

15 mm 8 in rods (15TUBE8)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 8-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

15 mm in rods (15TUBE4)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 4-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

(1) TOP PLATE, (1) EXTENDABLE REVOLT TOP HANDLE WITH EVF MOUNT, (1) PUSH BUTTON MAGIC ARM WITH VIEW FINDER BRACKET, (1 PAIR) OF TELESCOPIC HANDLES WITH PUSH-BUTTON, (1) REVOLT VCT UNIVERSAL BASEPLATE WITH SHOULDER MOUNT (BP10), (1 pair) 15MM ROD 4", (1 pair) 15MM ROD 8", (1) MATTE BOX 4X5.6, (1) FOLLOW FOCUS PRO
