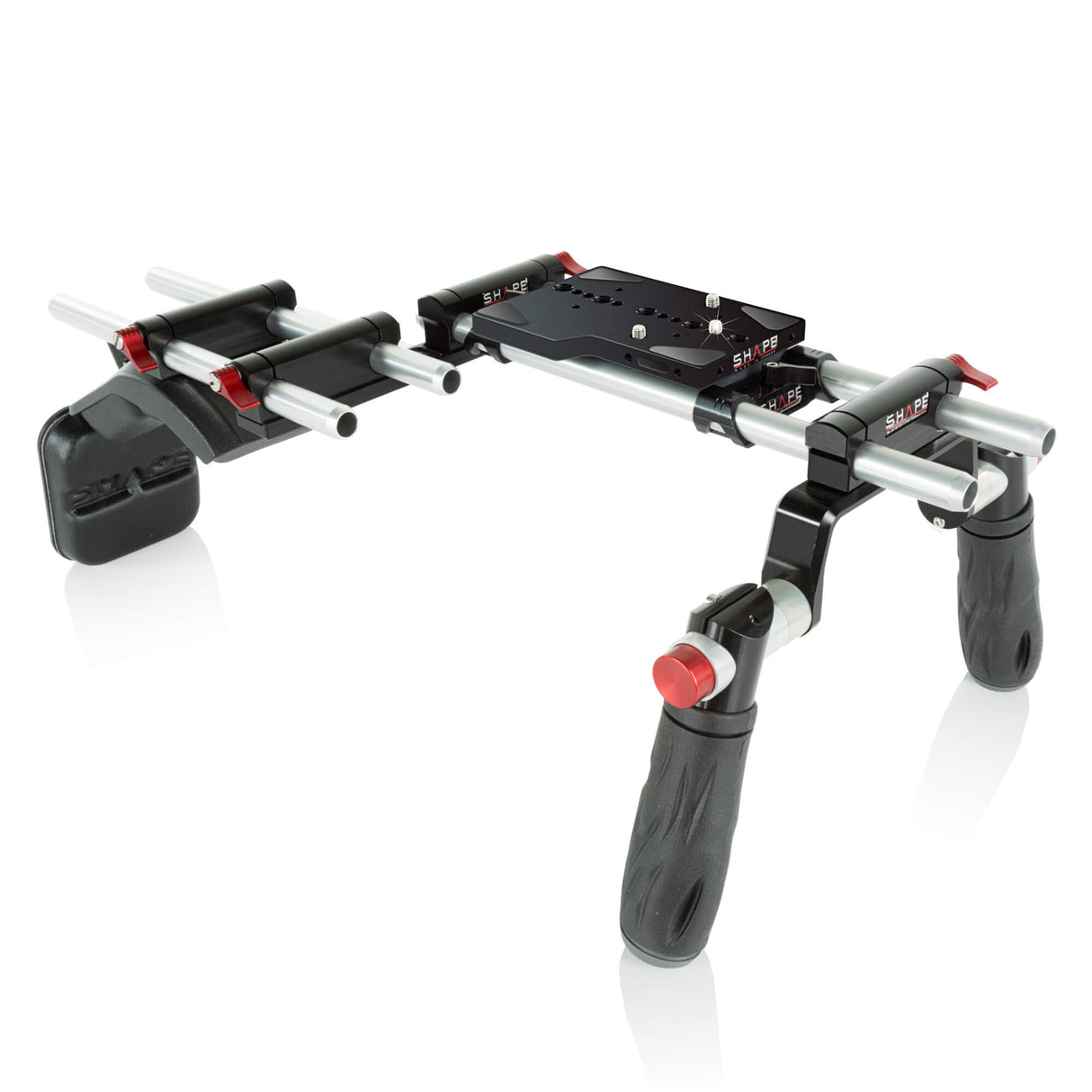

Épaulière offset pour Canon C200 REF C200-OF

Principales caractéristiques :

• Support décalé
• Épaulière confortable
• Base Canon C200 et C200B avec système de tige de 15 mm
• Poignée rapide avec bloc de tiges et système de bouton-poussoir
• Poussez, ajustez, relâchez, puis verrouillez

L'épaulière décalée de SHAPE pour Canon EOS C200 est conçue pour la prise de vue à main levée et spécialement conçue pour fonctionner avec la caméra de cinéma C200. Elle comprend une baseplate Canon C200, une mini plaque d'épaule composite PAD3, une plaque d'épaule composite PAD1, uneQuick Handle HAND5 avec Rod bloc, deux Rod blocs en aluminium de 15 mm 10" et 12" et un support décalé pour cage Blackmagic.

Canon C200 15 mm base (B15C200)

The SHAPE Baseplate is designed for use with the Canon C200 camera. The baseplate features three attachment points for securing your camera and tripod plate attachment via three 1/4"-20 mounting holes. Unscrewing the bottom section of the baseplate with an Allen key (included) reveals an adapter plate with several 1/4"-20 and 3/8"-16 threaded holes, suitable for optimizing your C200 camera balance on a tripod, gimbal, or drone.

Quick handle rod bloc (HAND5)

The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock.

Offset rail 15 mm 2-rod bloc (BMOFBRAC)

The SHAPE 15 mm Off-Set Bracket is designed to fit offset configuration and let you insert 15 mm rods.

Composite mini shoulder pad (SHPAD3)

The SHAPE mini composite shoulder pad is padded for superior comfort and is made of slip-free material. It is designed with a 15 mm rod block on top allowing to hold 15 mm rods for camera and accessories to be attached. The screw knob allows to attach SHAPE counter-weight (PAD1, PADCW1). By adding extra male-female rods at the back, you can also attach a counter-weight behind the same rods. This way, your body can easily supports the weight of the camera and its accessories. The shoulder pad is also the perfect solution for switching rapidly from shoulder to tripod without having to remove the shoulder pad. It can remain on the camera rig permanently.

Back pad (PAD1)

The back pad (PAD1) features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. It is compatible with the SHAPE Mini Composite Shoulder Pad (SHPAD3, SHPAD2, SHPAD1) and can be attach or remove easily from your rig via a 1/4-20 camera screw knob. Additionally, the back pad’s position can be adjusted to the user’s preference – up to 2″ vertically and 360° horizontally. The bottom of the back pad is designed with (2) 1/4-20 threaded holes, allowing to attach other accessories or counterweights.

15 mm 10" rods (15TUBE10)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 10-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

15 mm 12" rods (15TUBE12)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 12-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

(1) BASEPLATE WITH ROD SYSTEM, (1) ADAPTER PLATE, (1) OFFSET BRACKET, (1 PAIR) OF QUICK HANDLES WITH 15MM ROD BLOC AND PUSH-BUTTON SYSTEM (HAND5), (2) 15MM RODS 10”, (2) 15MM RODS 12”, (1) COMPOSITE MINI SHOULDER PAD, (1) BACK PAD, (1) MALE SCREW KNOB ¼-20
