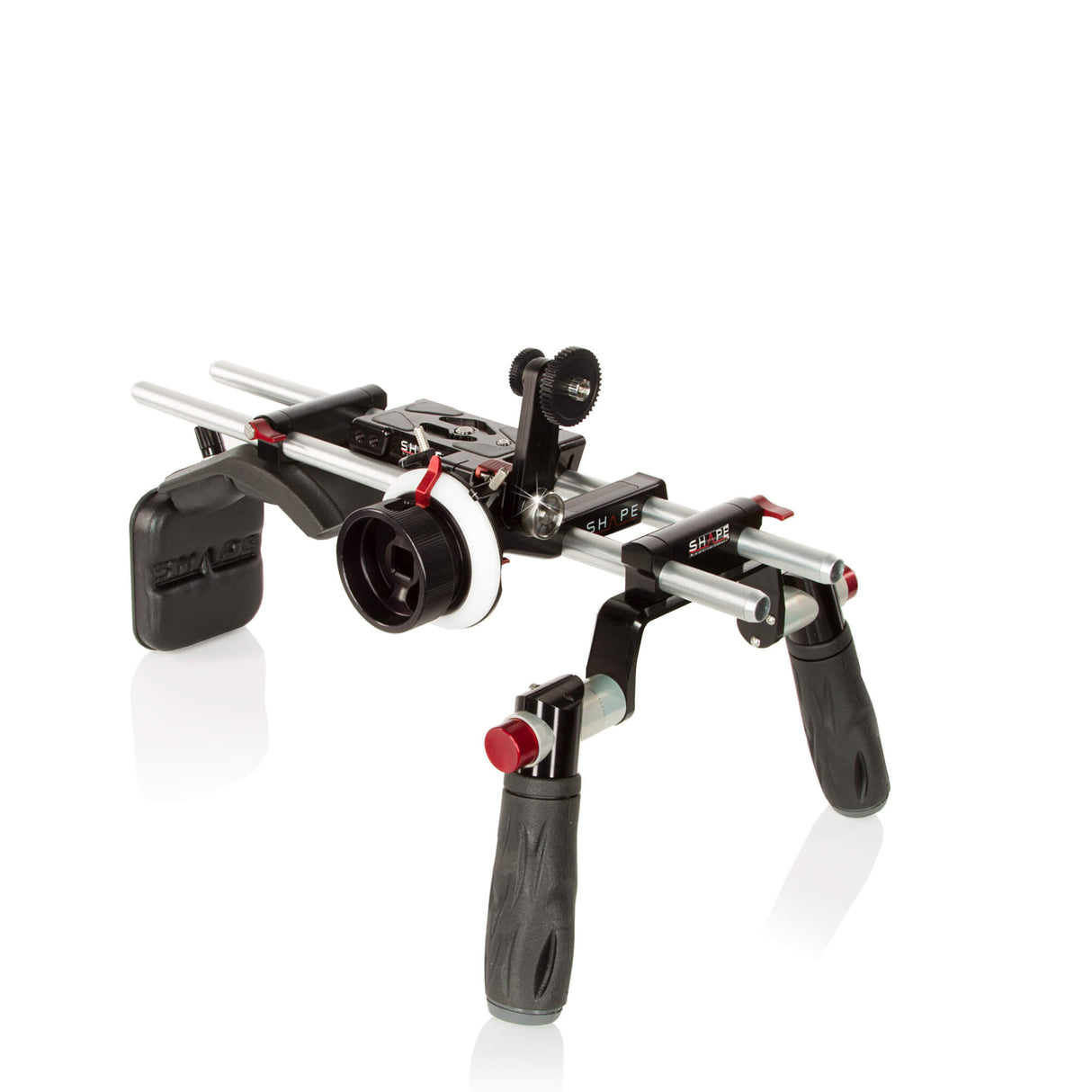

Épaulière, poignées quick handle et follow focus pour Sony FS5 et FS7M5

Sony FS5, FS5M2 baseplate (FS5BASE)

Small and lightweight baseplate is a perfect solution for PXW-FS5, FS5M2. It is designed to fit with all the key features of the camera and is also perfect for drone and gimbal application. At the top of the baseplate there are rubber pads so that the camera doesn’t sit directly on the aluminum. The baseplate fits 15 mm standard rods, and the rods are secured with a red ratchet knob screw. On the side, you have ¼-20 threaded holes for mounting options. Under the baseplate, we added four (4) ¼-20 and two (2) 3/8-16 threaded holes that allow you to attach a tripod plate. To reduce the weight of the baseplate, we removed excess aluminum from the bottom of the plate during the machining process. It comes with a pair of Rods to let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.

We also designed a removable support bracket for a METABONES® adapter (FS5MA) that can be added on the baseplate to support the weight and remove stress to the camera lens mount. Fixed with 2 screws in front of the baseplate, it can be removed when not needed. (1) ¼-20 and (1) 3/8-16 captive screw are included in this package to secure the camera’s position in translation and rotation so it won’t move. For a precise positioning, we designed the bracket with a 3 mm vertical adjustment to make sure it’s well positioned for the best support. The baseplate includes a set of 15 mm 10 inches rods and is designed with a lightweight system for mounting any standard 15 mm accessories.

Quick handle rod bloc (HAND5)

The SHAPE Quick handle rod bloc is a professional video stabilization accessory with 2 camera handle grips, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple Push-Button located at the articulation allows easy attachment and removal. Combined with the anodized aluminum rod bloc, the quick handle offers composite camera support for all 15 mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Bloc. The rod bloc is designed with 2 screw-threaded holes allowing the mounting of the Quick Handle.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock.

Composite mini shoulder pad (SHPAD3)

The SHAPE mini composite shoulder pad is padded for superior comfort and is made of slip-free material. It is designed with a 15 mm rod block on top allowing to hold 15 mm rods for camera and accessories to be attached. The screw knob allows to attach SHAPE counter-weight (PAD1, PADCW1). By adding extra male-female rods at the back, you can also attach a counter-weight behind the same rods. This way, your body can easily supports the weight of the camera and its accessories. The shoulder pad is also the perfect solution for switching rapidly from shoulder to tripod without having to remove the shoulder pad. It can remain on the camera rig permanently.

Back pad (PAD1)

The back pad (PAD1) features a powder coated anodized aluminum plate and arm which are attached to a thick padding on the side facing the user. It is compatible with the SHAPE Mini Composite Shoulder Pad (SHPAD3, SHPAD2, SHPAD1) and can be attach or remove easily from your rig via a 1/4-20 camera screw knob. Additionally, the back pad’s position can be adjusted to the user’s preference – up to 2″ vertically and 360° horizontally. The bottom of the back pad is designed with (2) 1/4-20 threaded holes, allowing to attach other accessories or counterweights.

Follow Focus Pro (FFPRO)

Manufactured in sleek black anodized aluminum, this special edition professional follow focus unit combines a refined look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down. The SHAPE engineering team is internationally renowned for creating one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth, depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.

15 mm 18 in rods (15TUBE18)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 18-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

(1) SONY FS5 BASEPLATE WITH 15MM ROD BLOC SYSTEM (FS5BASE), (1 PAIR) OF QUICK HANDLES WITH 15MM ROD BLOC AND PUSH-BUTTON SYSTEM (HAND5), (2) 15MM RODS 18”, (1) COMPOSITE MINI SHOULDER PAD, (1) BACK PAD, (1) MALE SCREW KNOB ¼-20, (1) FOLLOW FOCUS PRO
