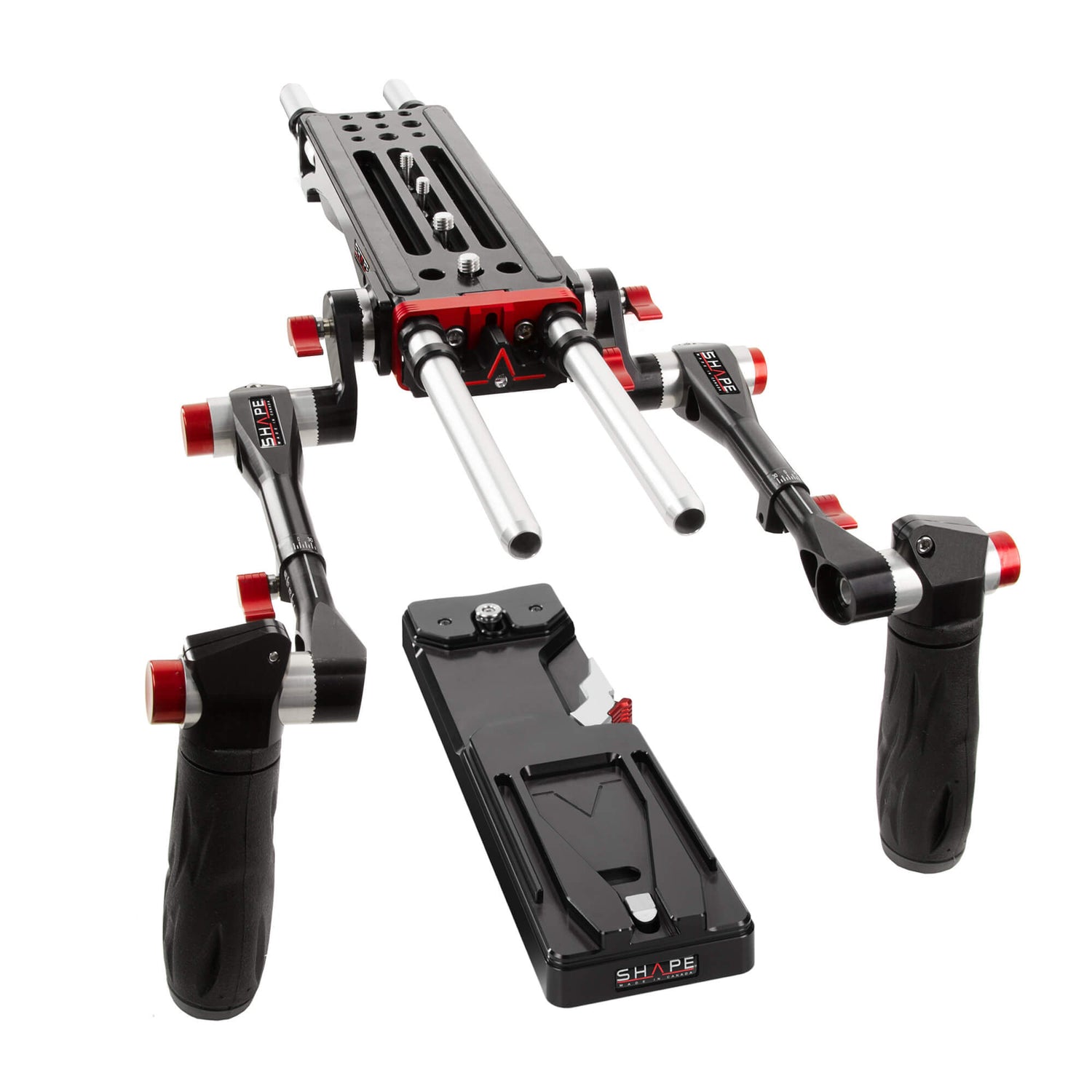

V-lock quick release baseplate avec plaque de trépied et poignées télescopiques Arri rosette

Avec sa longue plate-forme plate et son système quick release V-Lock, cet ensemble est une option polyvalente pour les caméras de cinéma de taille moyenne. La pièce maîtresse du kit est la V-lock quick release baseplate. Ajuster la hauteur du Rod bloc en fonction du centre optique de la caméra pour atteindre une mise au point précise avec des lentilles grandes ou petites. Les Rod blocs réglables à l'avant et à l'arrière conviennent aux systèmes de rods standard de 15 mm (LWS). Un montage sur trépied est également possible avec la plaque d'adaptation quick release compatible avec les plaques de trépied VCT-14.

8000 v-lock quick release baseplate (BP0008)

The SHAPE BP0008 V-Lock Quick Release Baseplate is a long format baseplate for larger cameras like the Alexa, F5, C300, and broadcast cameras. It can be used shoulder mounted, tripod mounted, and attached to V-lock tripod adapters. It should be used with cameras with external viewfinders. The baseplate includes a removable shoulder pad and features rosette adapters for ARRI standard handles. It has 1/4″-20 and 3/8″-16 tripod mount threads and a V-lock delta adapter for attaching SHAPE VCT Tripod Plate (VCTSH) or any VCT-14 tripod plate.

The shoulder pad secures on by touch fasteners. The tripod mount threads are located underneath the shoulder pad. Two pairs of 8″ and 4″ 15 mm rods are included for the front and back. For attaching a matte-box and other accessories, the rod adapter can be adjusted vertically if you remove the screw holding it in position. This baseplate also supports optional SHAPE 15 mm Studio and 19 mm Studio adapters in place of the included one. The baseplate features three camera mount slots, all supporting 1/4″-20 and 3/8″-16 screws. The off-center slots allow you to mount your camera offset if you use a 15 mm Studio Adapter. Multiple 1/4″-20 and 3/8″-16 mounting threads are peppered behind the three slots for attaching articulating arms and other accessories. Two 1/4″-20 and two 3/8″-16 camera mount screws are included.

Spare pad for BP series (BP0050)

The V-Lock Replacement Pad from SHAPE is a replacement shoulder pad for the BP SERIES v-lock quick release baseplate (BP0008, BP8000, BP7000). The pad utilizes a hook-and-loop system which allows for easy attachment and removal. The additional padding provided by the strap increases user comfort and reduces strain on the shoulder.

15 mm in rods (15TUBE4)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 4-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

15 mm 8 in rods (15TUBE8)

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter


• 8-in length


• Hollow, non-threaded


• Tapered ends for easy connection to a rod block


• Aluminum coated with a clear finish

SHAPE VCT tripod plate (VCTSH) (VCTSH)

The SHAPE VCT Tripod Plate is a quick-release tripod plate based on a V-lock system with delta attachment at the front and a rear pin at the back. Compatible with a wide variety of baseplates, it facilitates quick-release mounting/unmounting of professional broadcast cameras. The delta plate system at the front of this plate and the rear catch hook will allow you to quickly mount and dismount your camcorder from a tripod adapter.

Telescopic SHAPE handle Arri rosette (HAND12)

Left and right telescopic handgrips with ARRI rosettes that can be attached to cameras or camera support hardware that has standard ARRI rosettes, which allow you to lock your arms in place. Each arm features four points of articulation (2 Push-button and 2 ratchet knob) to adjust the arms position. The ratchet knob along the arms allows you to extend the arms up to 2 inches and rotate the handgrips throughout 360°. The one near the rosette gives you more option to position the arm for your comfort.

SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developped to give filmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. Push, adjust, release, and then its lock. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while the second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

(1) V-LOCK QUICK RELEASE BASEPLATE WITH SLIDING ROD BLOC SYSTEM, (1) SHOULDER PAD, (2) 15MM RODS 4" , (2) 15MM RODS 8", (1) VCT TRIPOD PLATE, (1 PAIR) OF TELESCOPIC HANDLE WITH PUSH-BUTTON AND ARRI ROSETTE MOUNT (HAND12)
